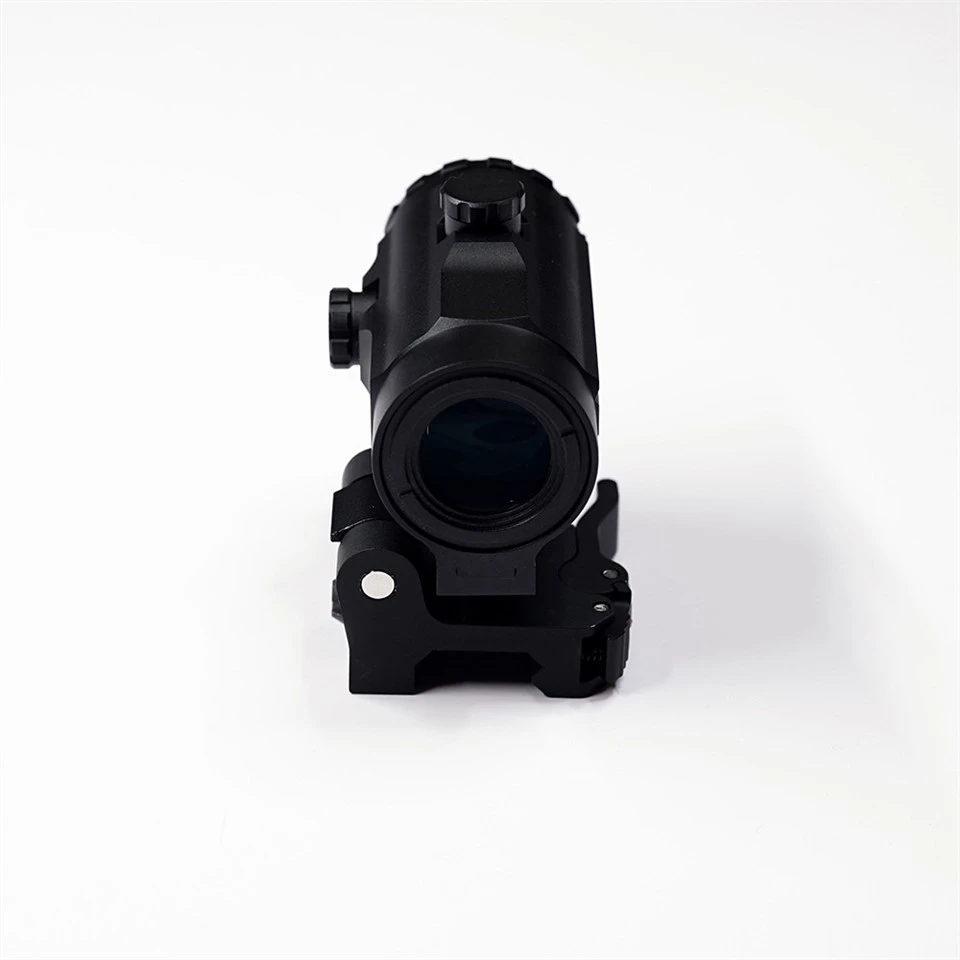

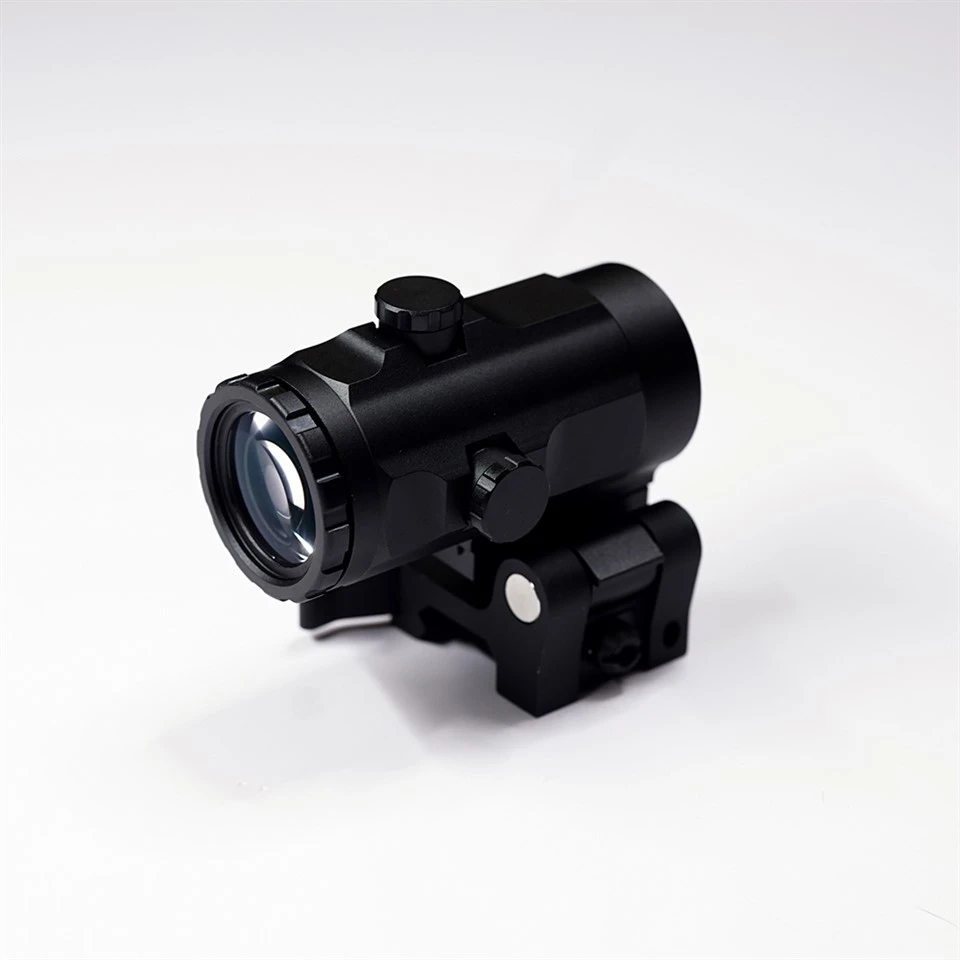

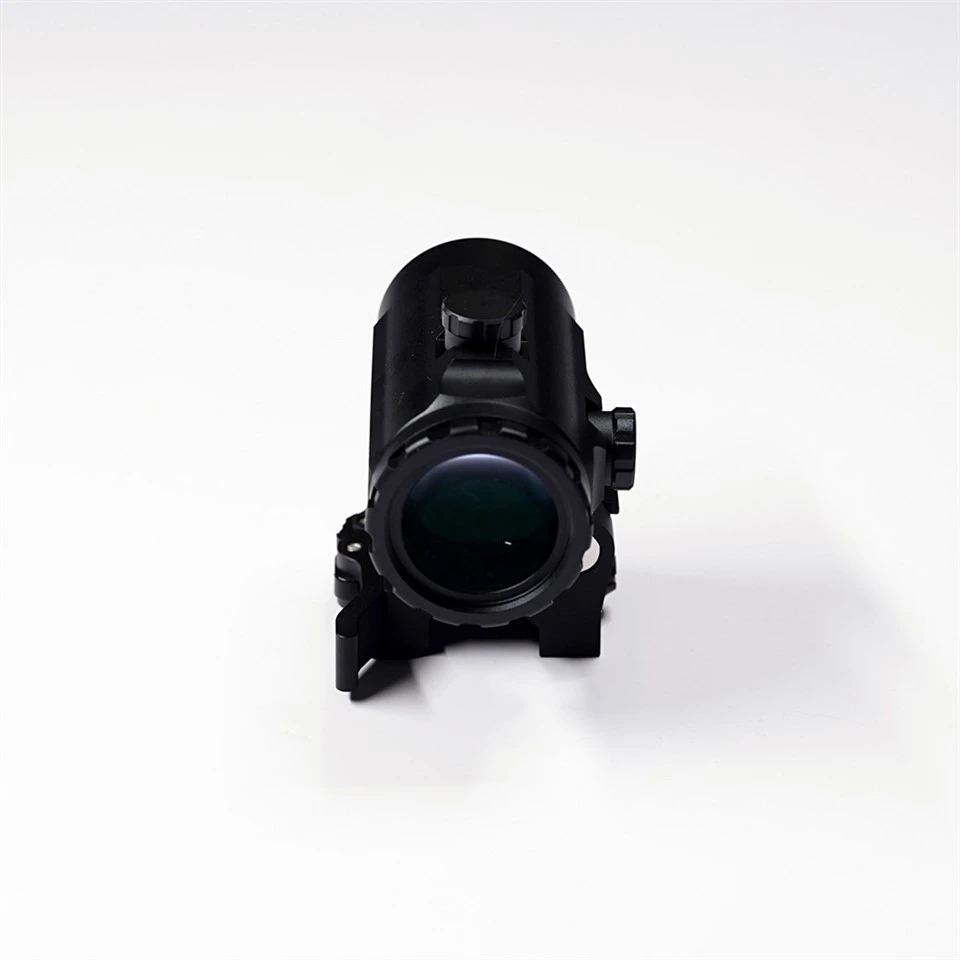

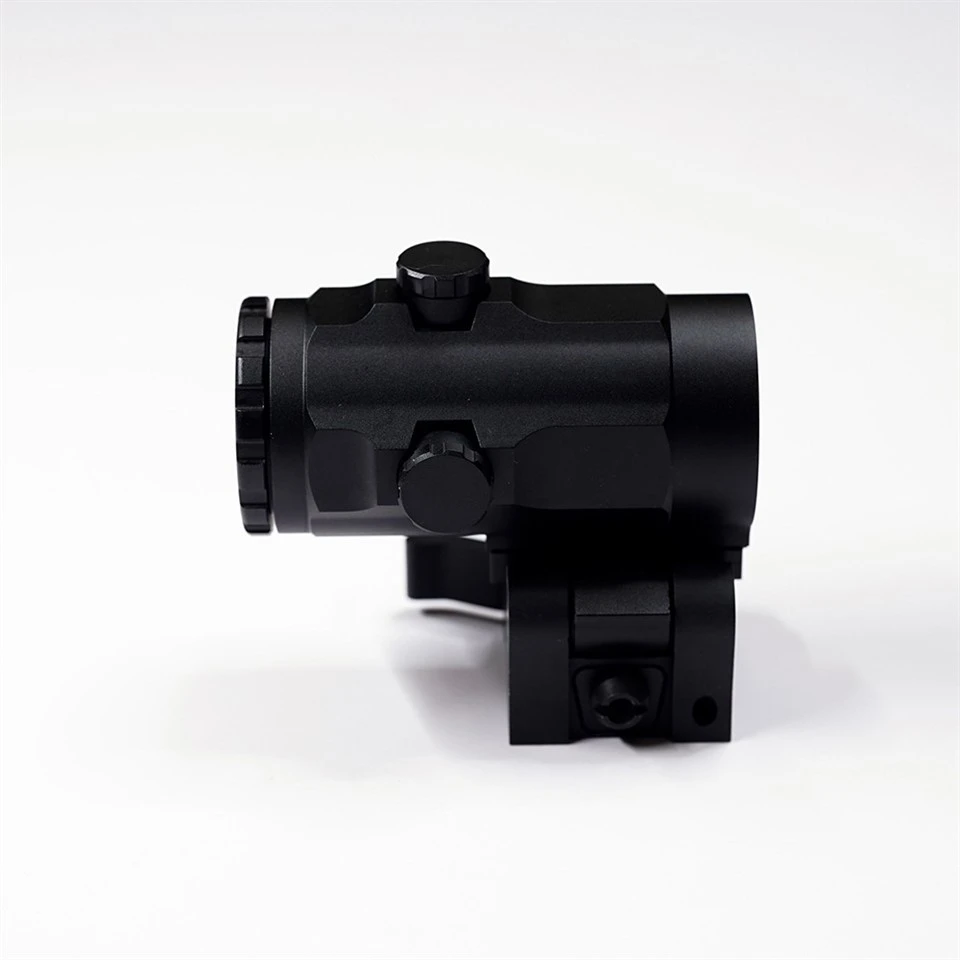

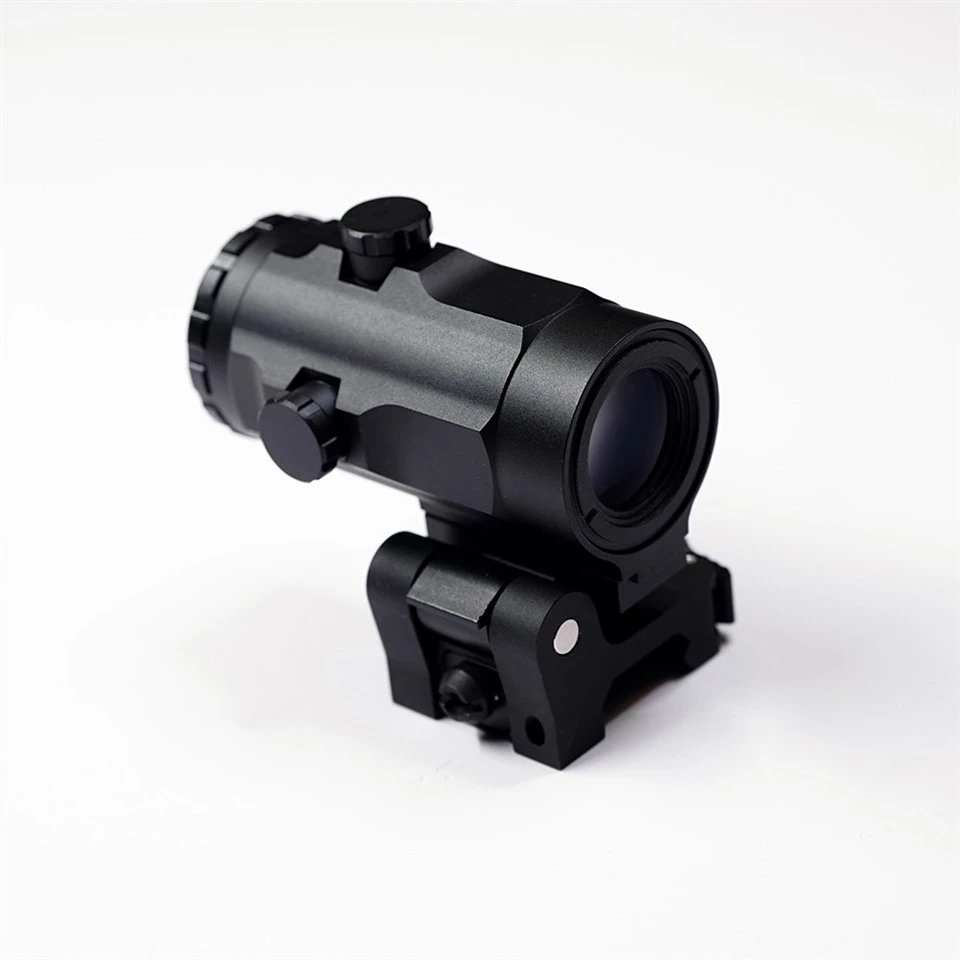

3X Magnifier
The 3X Magnifier is adapted for the holographic, red dot scope, It’s doubled in series with the scope to achieve both far and near combat.
Send Inquiry
Product Introduction
Product Features
- Ultrashort optical system, smaller size;
- Holographic aluminum alloy cutting, higher strength;
- Open locking mechanism, disassembly more convenient;
- With automatic locking adjustment mechanism, long-term shooting will not offset the field of view;
Specification
|
Product Name |
3X Magnifier |
|
|
Optical Properties |
Magnification |
3X |
|
Field of view |
8° |
|
|
Parallax |
1′ |
|
|
Objective diameter |
21.8mm |
|
|
Visual adjustment range |
+2~-5D |
|
|
Exit pupil diameter |
6.3mm |
|
|
Exit pupil distance |
60mm |
|
|
adjustment range |
±45MOA(elevation / azimuth) |
|
|
Mechanical Parameters |
Material |
Aviation aluminum 7075 |
|
Processing methods |
CNC cutting |
|
|
Surface treatment |
Black oxide |
|
|
Center height |
38mm |
|
|
Base |
Picatinny rail |
|
|
Dimensions |
78.7 x 58.4 x 83.8 mm |
|
|
Weight |
330g |
|
|
Environment Parameters |
Operating temperature |
-40℃~+65℃ |
|
Storage temperature |
-45℃~+70℃ |
|
|
Waterproof level |
IP67 |
|
Detailed Pictures

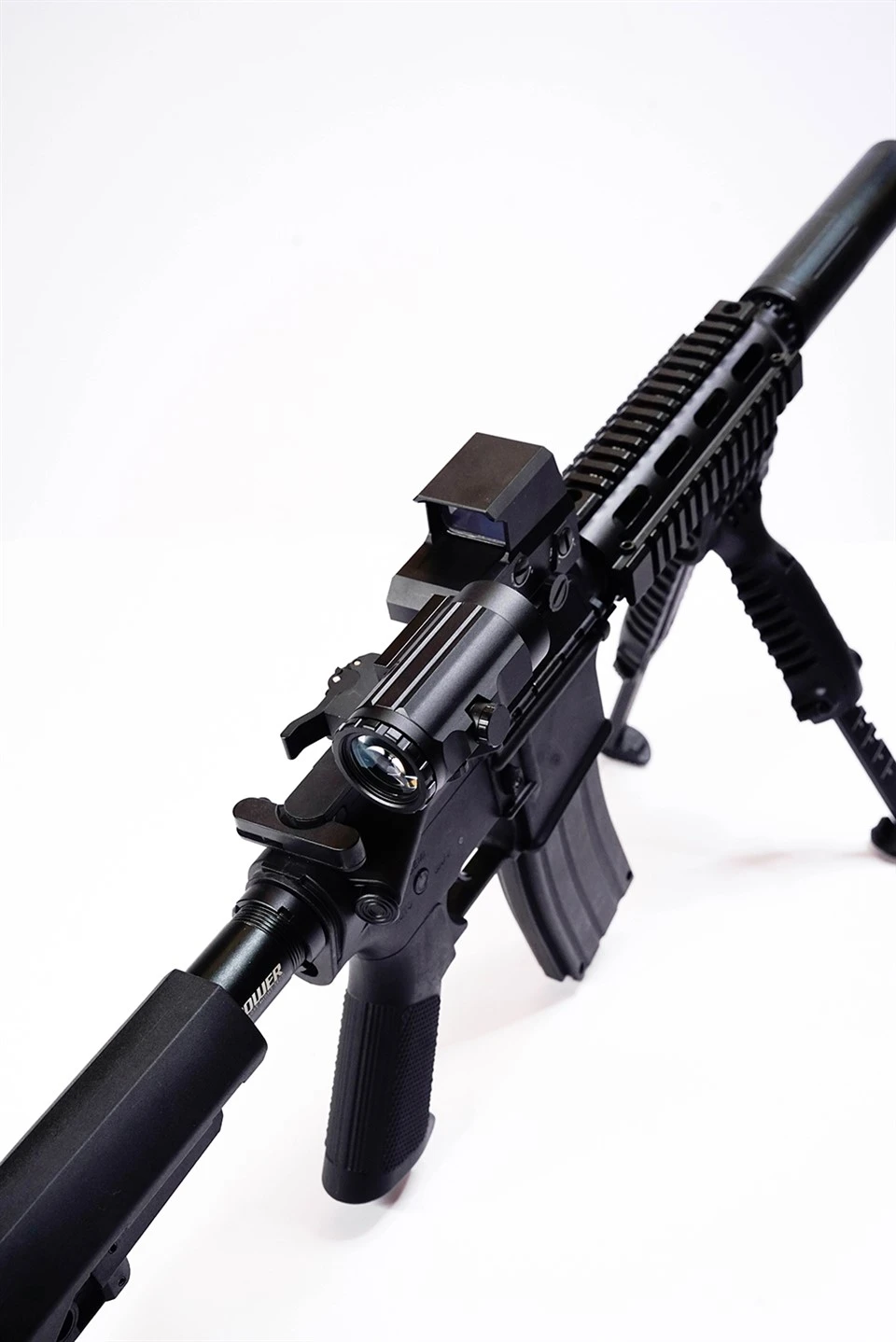

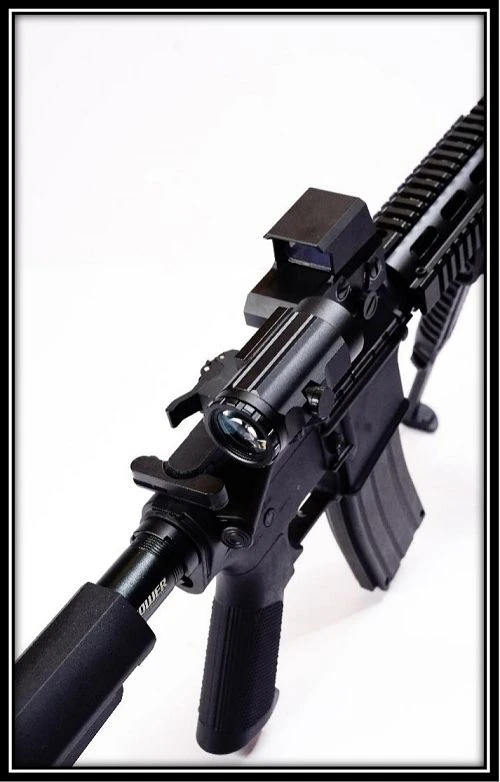

Flip effect

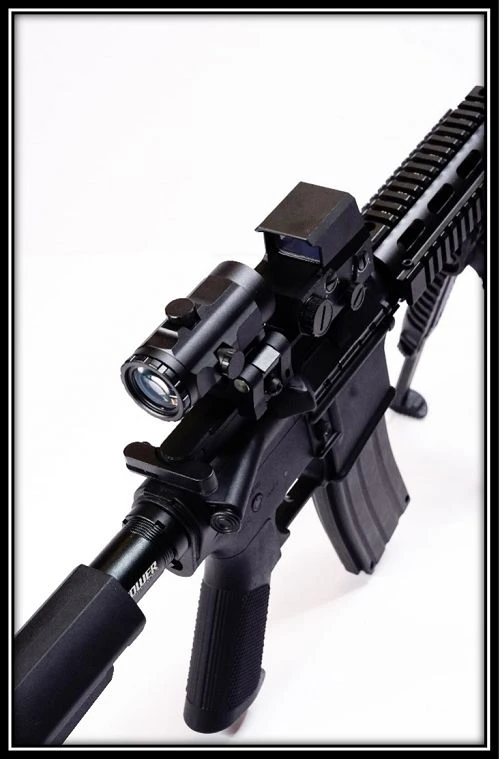

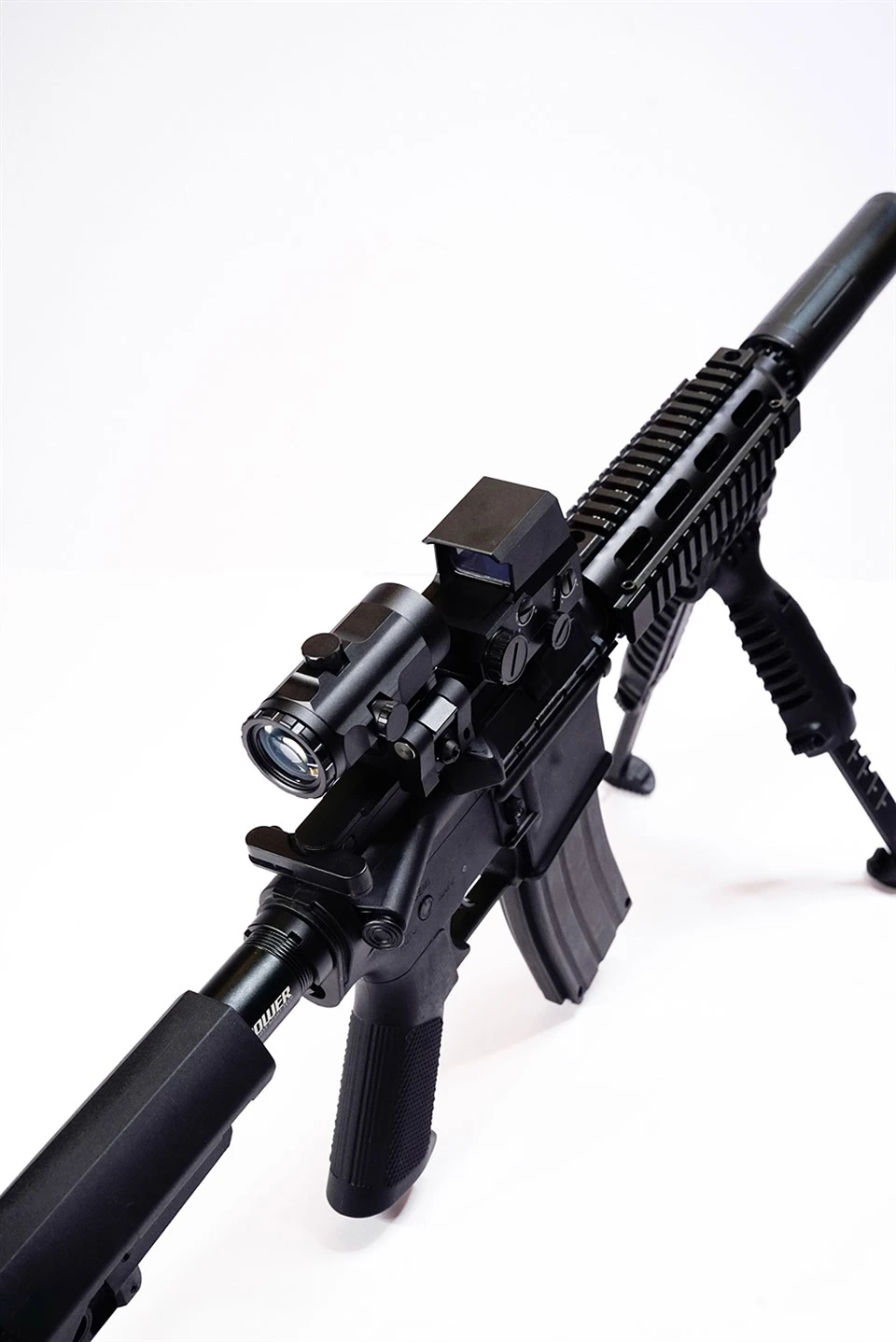

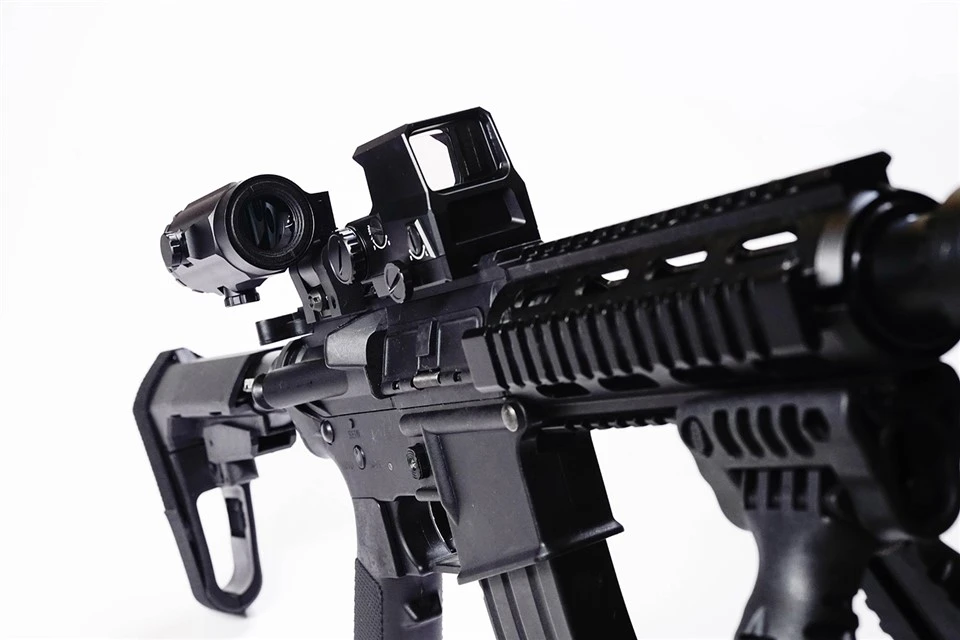

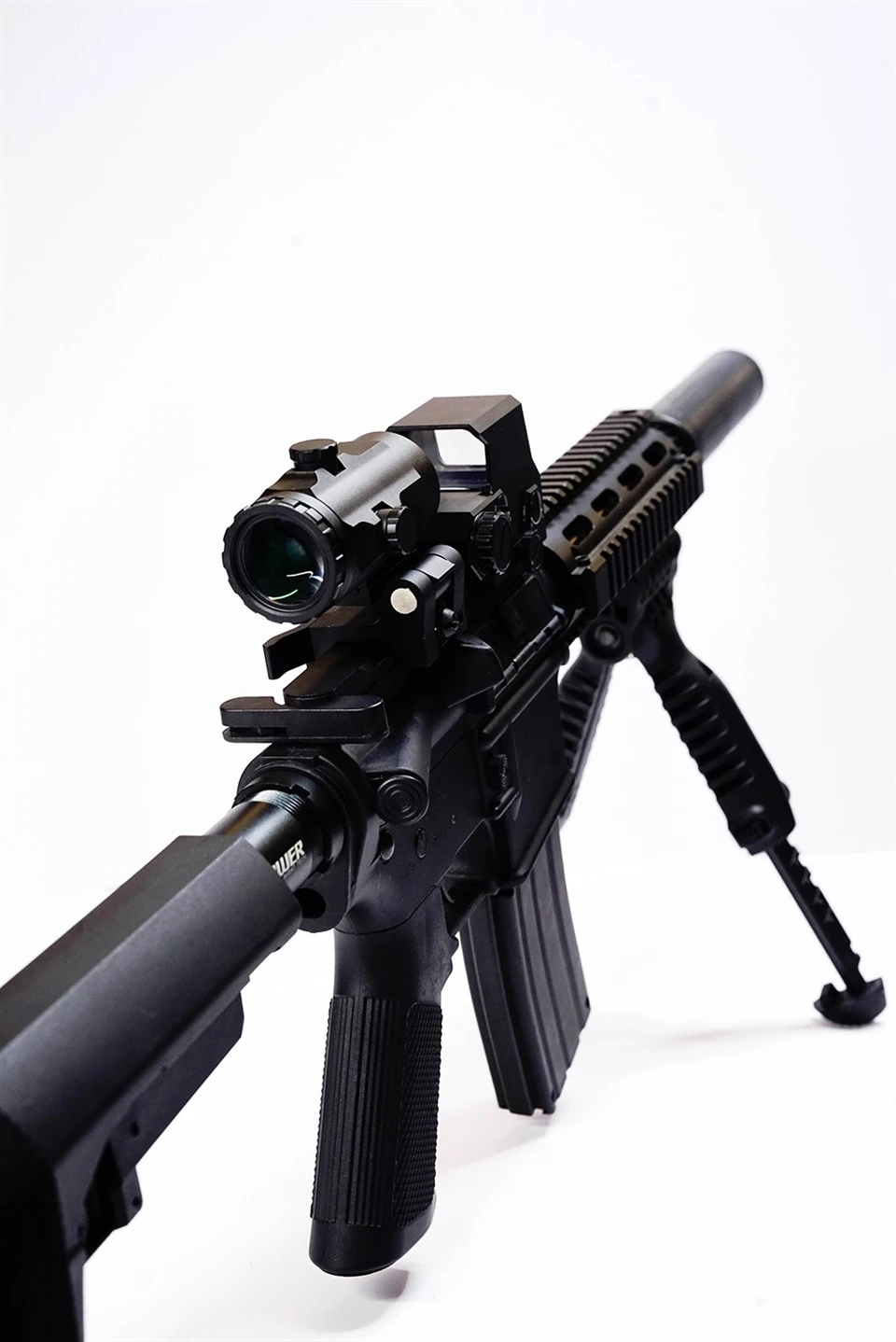

Connect with holography sight

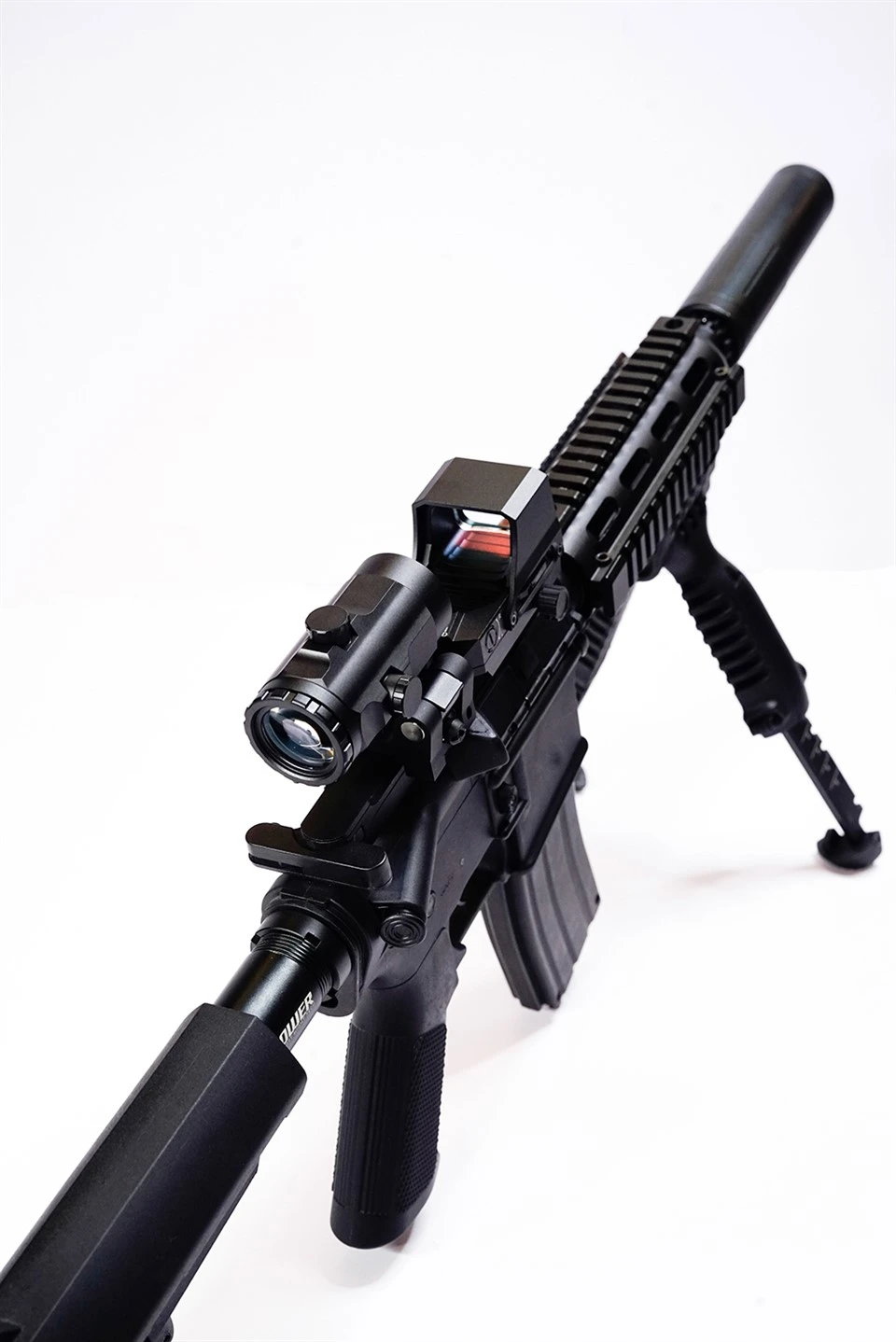

Connect with red dot sight
