BALTIC DEFENSE — OEM/ODM BALLISTIC HELMET MANUFACTURING SPECIFICATION
Core Engineering & Ballistic Performance
Engineered for military units, tactical law enforcement, and government procurement programs, our helmets deliver certified ballistic protection combined with predictable, high-performance lifecycle endurance.

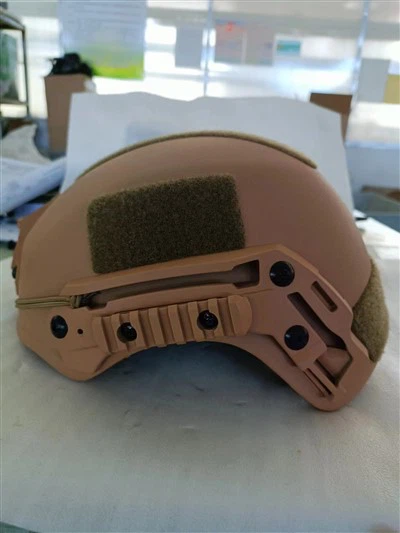

Standard Compliance: Independently tested and certified to NIJ 0106.01 Level IIIA (stopping 9mm FMJ and .44 Magnum SJHP threats). Full independent laboratory test reports (OBL or H.P. White equivalent) accompany every production batch.
Blunt Force Mitigation: Optimized internal shell geometry creates a strategic standoff gap between the operator's head and the composite wall. This absorbs impact energy and minimizes backface deformation (BFD) to prevent severe closed-head trauma.
Complete Traceability: Every helmet shell is laser-engraved with a unique batch number, production date, and lot code, guaranteeing rigorous quality tracking from raw fiber to final export.
Materials & Weight Optimization
We deploy high-performance ballistic raw materials tailored to specific mission profiles, carefully balancing structural integrity against operator fatigue.
|
Performance Metric |

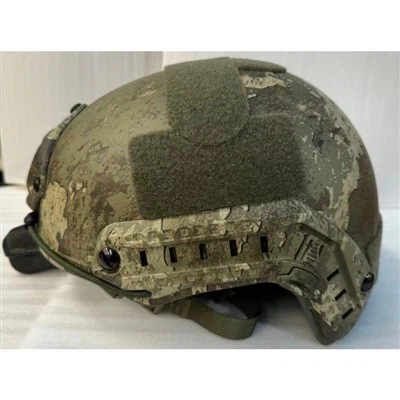

Aramid Fiber (Kevlar Equivalent) |

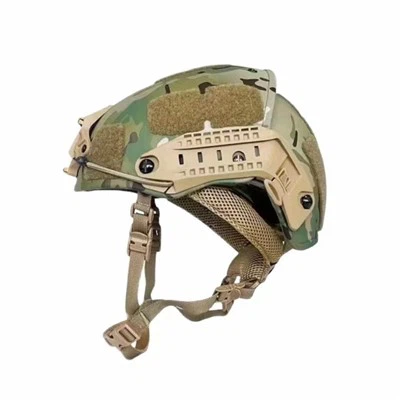

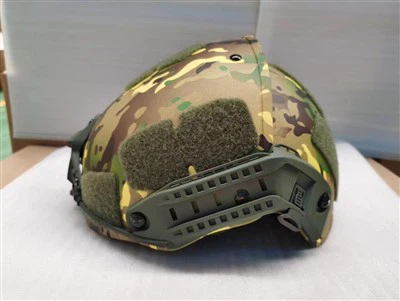

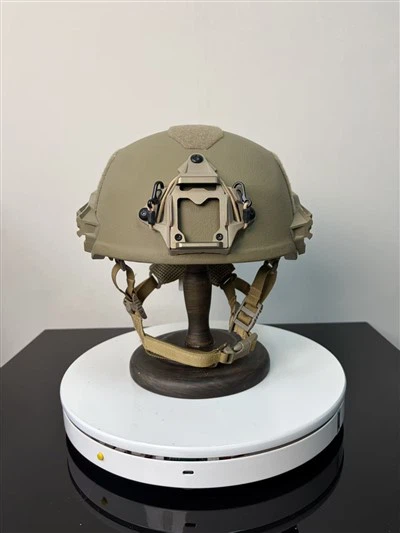

UHMWPE (Ultra-High-Molecular-Weight Polyethylene) |
|
Density & Weight |
Standard tactical weight (approx. 1.45 – 1.60 kg) |
Ultra-lightweight configuration (approx. 1.25 – 1.35 kg) |
|
Thermal Performance |
Retains structural stability up to 160°C; inherently flame retardant |
Optimized for high-mobility, temperate-to-arid environments |
|
Tensile Strength |
High energy absorption under multi-hit impacts |
Superior strength-to-weight ratio; positive buoyancy |
|
Best Suited For |
Standard infantry, mechanized units, and riot control |
Special operations, airborne units, and long-range patrols |
Structural Cuts & Configurations
Molded via multi-axis hydraulic presses to guarantee consistent shell thickness and uniform ballistic protection across complex, curved contours.
Available Shell Profiles

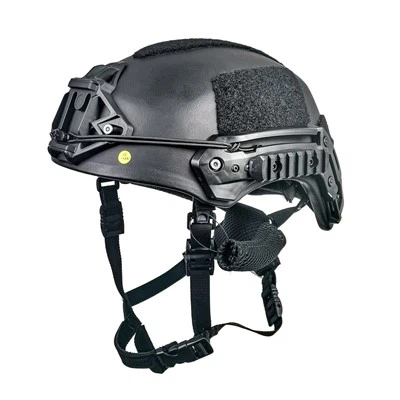

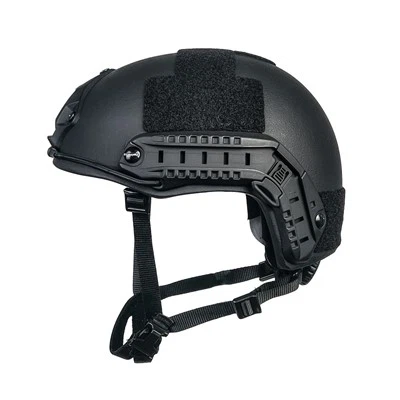

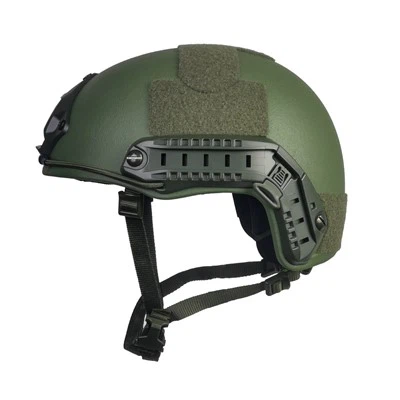

FAST / High Cut: Engineered with reduced coverage for maximum mobility, fully compatible with over-the-ear communication headsets.

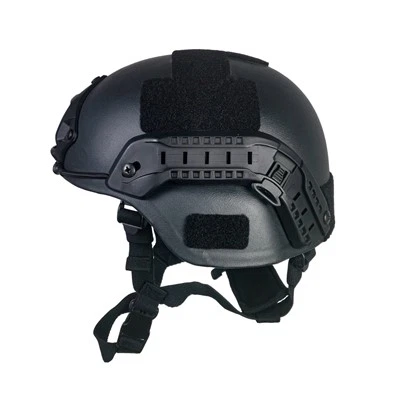

MICH 2000 / Mid Cut: Provides balanced ear coverage, optimal for standard tactical communications and enhanced fragment protection.
PASGT / Full Cut: Traditional full-coverage geometry favored by conventional security and peacekeeping forces.
Modular Hardware Integration

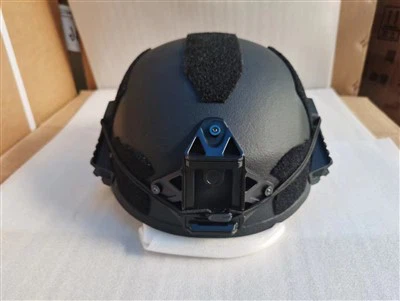

NVG Mount: CNC-machined aerospace-grade aluminum or reinforced nylon shroud featuring integrated bungee retention cords.
ARC Rails: Glass-filled polymer side rails designed for secure tactical flashlight, camera, and oxygen mask attachments.
Velcro Panels: Precision-cut loop panels bonded directly to the shell surface for IR patches and unit identifiers.
Suspension & Retention Systems
Retention Harness
4-point or 5-point fully adjustable mil-spec nylon webbing, anchored by double-stitched points embedded straight into the composite shell.
Adjustment Mechanism
Offered with standard tri-glide sliders or an optional BOA®-style dial system for fast, micro-adjustable head circumference sizing.
Impact Pad Array
Modular multi-layer foam pad configuration (available in D3O or closed-cell memory foam options) engineered to resist moisture, enhance ventilation, and maintain stability during dynamic movement.
Manufacturing & Quality Control Protocol
Our ISO 9001 certified facility enforces stringent standard operating procedures (SOPs) across a 12-step manufacturing and inspection chain:
Raw Material Verification: Lot-by-lot testing of aramid fabric and UD-PE pre-preg rolls for exact areal density and resin content.
Precision Pre-Forming & Lay-up: Computer-guided cutting paired with cross-ply orientation to optimize ballistic energy dispersion.
High-Pressure Molding: Hydraulic compression molding under tightly controlled temperature and pressure profiles to eliminate delamination and voids.
CNC Trimming: 5-axis robotic waterjet or CNC routing for precise edge cutting and clean mounting hole placement.
Surface Finishing: Application of waterproof, non-reflective, textured polyurethane paint designed to resist UV degradation, chemical solvents, and salt fog.
Multi-Stage QC Inspection:
- Shell thickness verified using ultrasonic gauges.
- Weight consistency check (strict tolerance within +/- 30 g).
- Pull-test verification on all retention hardware (minimum 50 kg load test).
- Random destructive batch testing for ballistic limit (V50) and backface deformation verification.
OEM/ODM Customization & Export Support
Backed by factory-direct production capacity, we offer comprehensive private-label manufacturing and full support for international government tenders:
Production Capacity
A stable output exceeding 15,000 units per month ensures reliable fulfillment for large-scale government contracts.
Colorway Options
Matte Black, Olive Drab (OD) Green, Coyote Brown, Ranger Green, Multicam hydro-dipping, or custom Pantone matching.
Sizing Matrix
Standard sizing covers S, M, L, and XL, complemented by adjustable padding kits.
Export Documentation Support
Comprehensive paperwork provided for smooth international shipping, including Certificates of Origin, independent ballistic lab test reports, and complete assistance with End-User Certificates (EUC) to comply with global regulations.
Branding Services
Laser-etched interior plates, customized user manuals, and tailored export packaging boxes featuring client logos.
MOQ & Lead Times
Accessible minimum order quantities (MOQs) for evaluation samples, backed by reliable mass production lead times.
