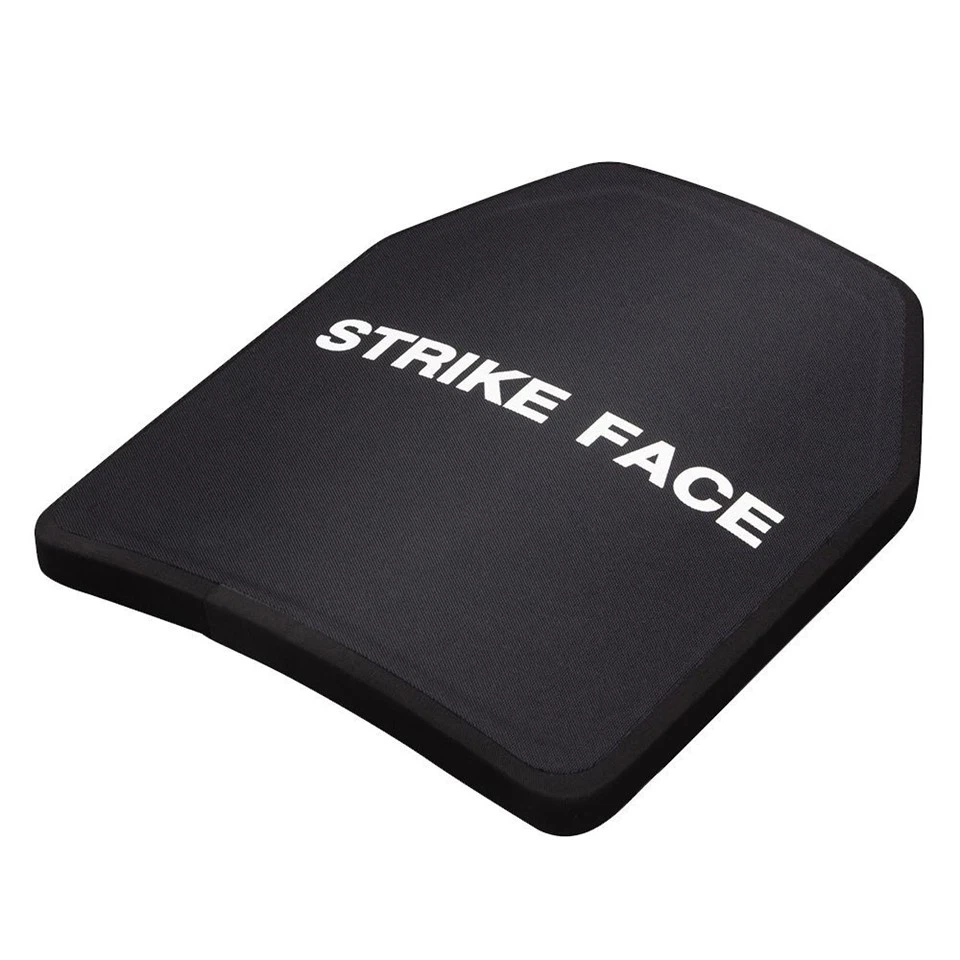

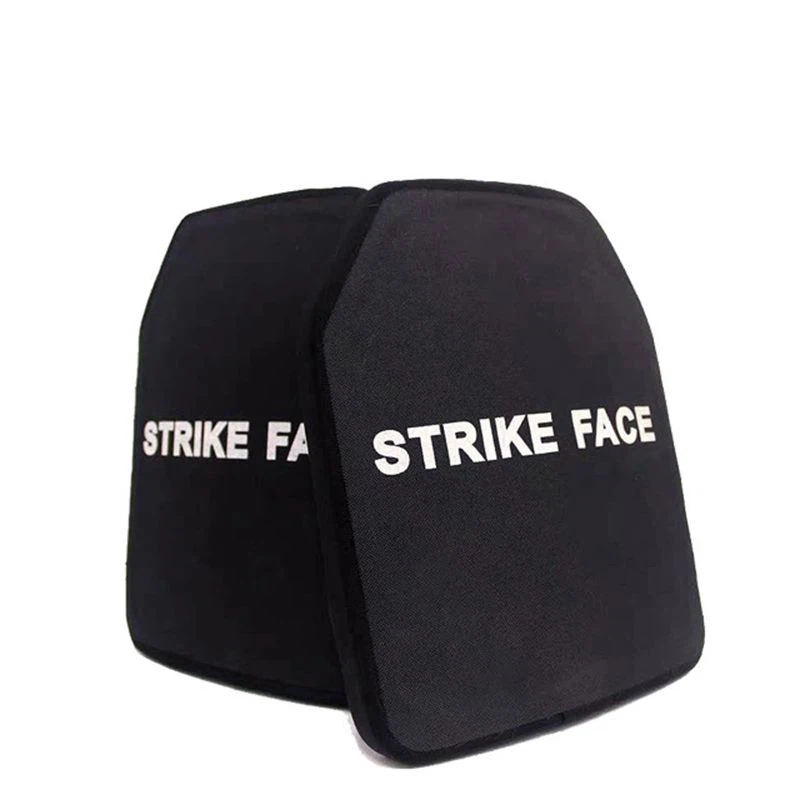

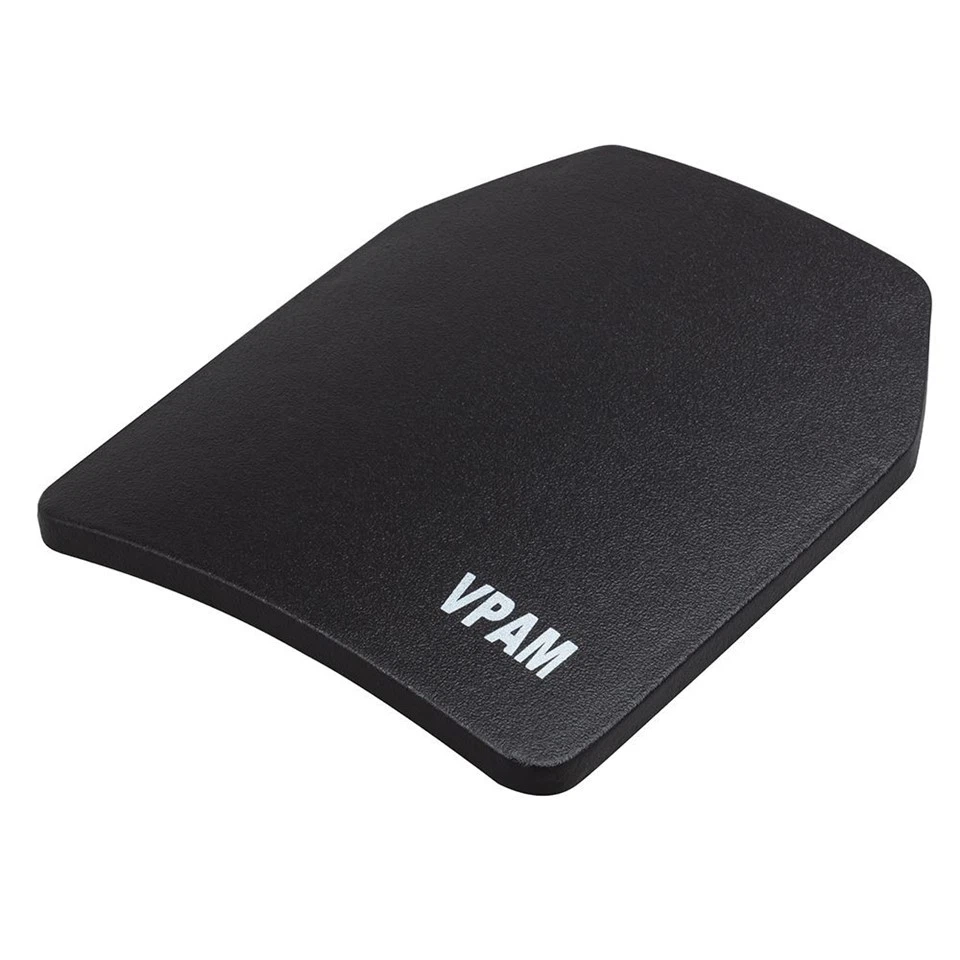

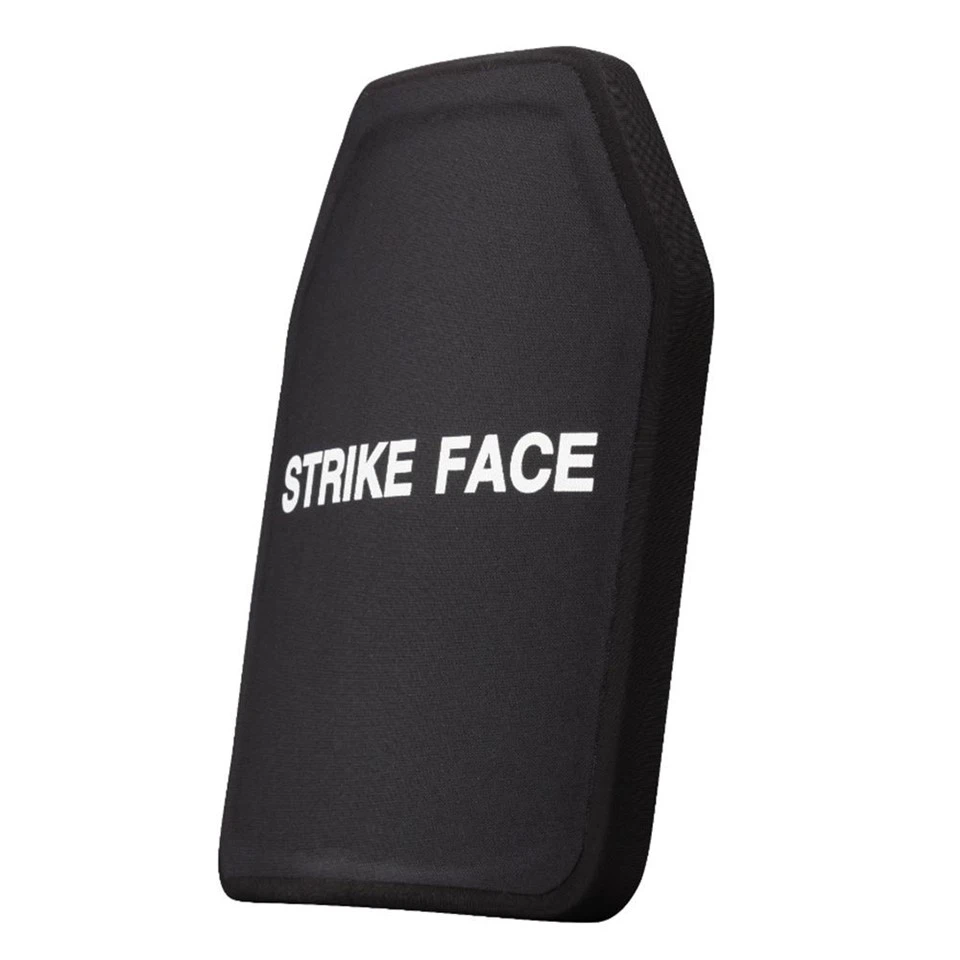

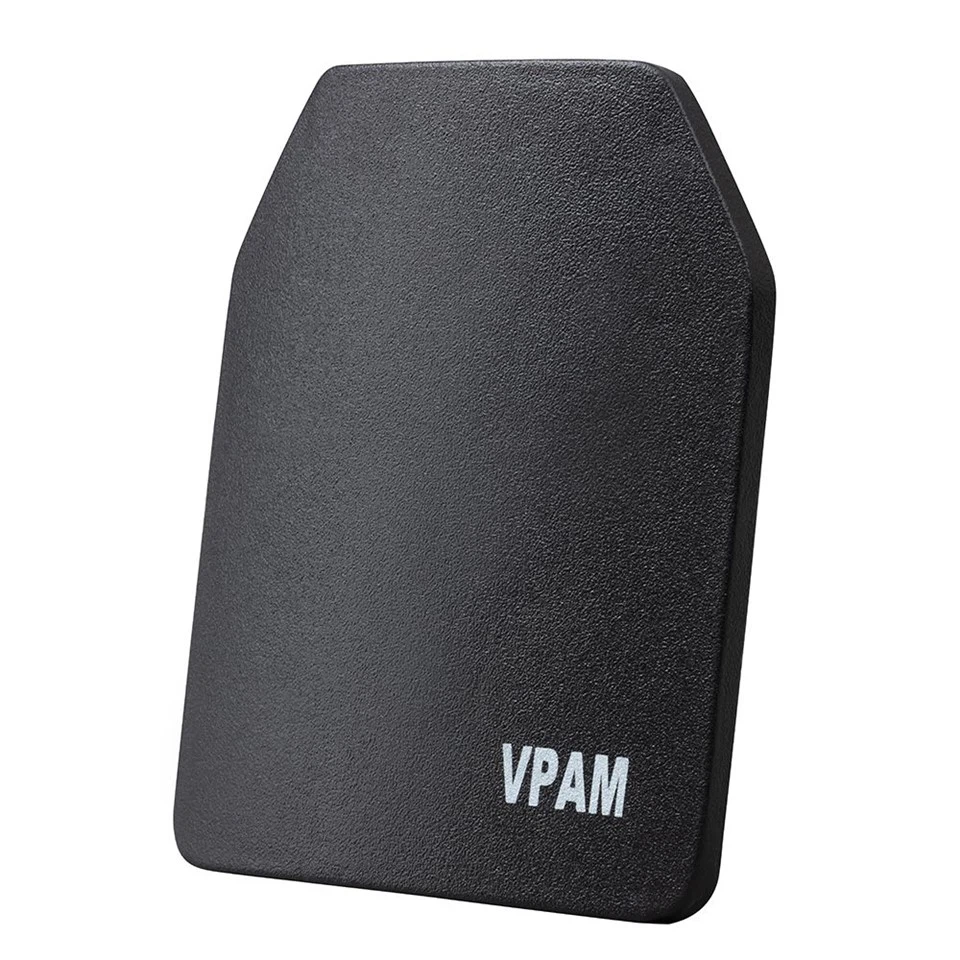

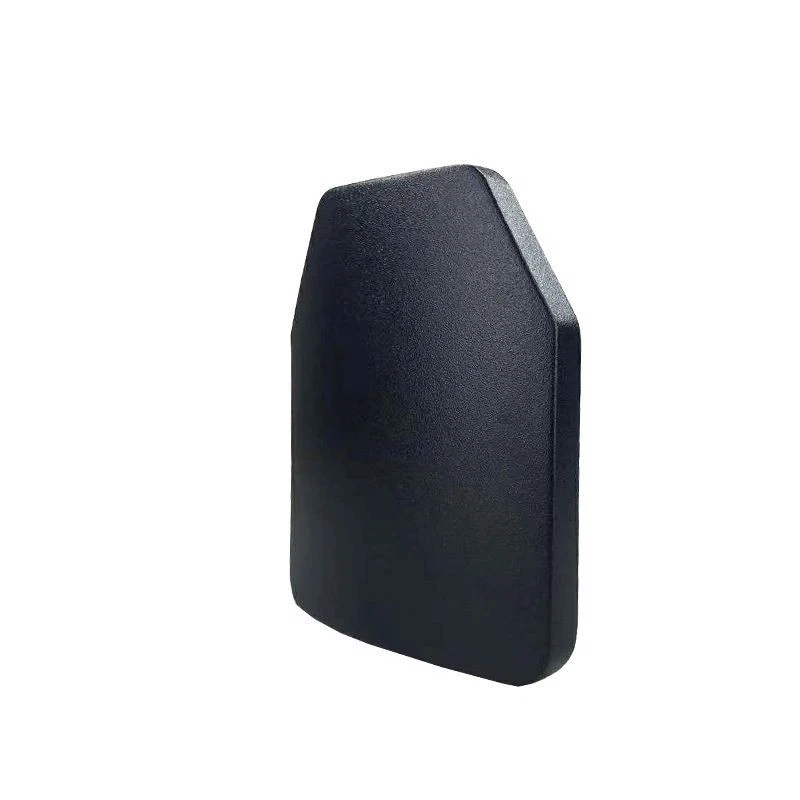

Ballistic Protection Panels
Dimensions: Standard SAPI/ESAPI Cut (10" x 12" / 250x300mm).
Weight: 1.3kg (Level III PE) to 2.8kg (Level IV Ceramic Composite).
Product Overview & Shielding Science
The Jiu'an Ballistic Protection Panels are precision-engineered inserts designed to upgrade standard tactical carriers to rifle-rated defense levels. Manufactured by Jiangsu Jiu'an Police Equipment Manufacturing Co., Ltd., these panels represent the cutting edge of material science, utilizing ultra-high-molecular-weight polyethylene (UHMW-PE) and monolithic ceramics to neutralize high-velocity rifle threats. Whether used as a "Stand-Alone" plate or to reinforce soft armor, these panels are the critical barrier between the wearer and high-caliber ammunition.
Technical Specifications
|
Material Options |
100% Pure UHMW-PE (Lightweight) or Alumina Ceramic + PE Composite (High-Threat). |
|
Protection Levels |
NIJ 0101.06 Level III, III+, or Level IV. |
|
Threat Profile |
Stops 7.62x39mm AK47 MSC, 5.56x45mm M193/M855, and .30-06 AP (Level IV). |
|
Curvature |
Single-Curve or Multi-Curve anatomical designs. |
|
Dimensions |
Standard SAPI/ESAPI Cut (10" x 12" / 250x300mm). |
|
Weight |
1.3kg (Level III PE) to 2.8kg (Level IV Ceramic Composite). |
【Core Features & Engineering Advantages】
Advanced Kinetic Energy Absorption:
Our composite panels utilize a "Fracture-Management" ceramic face that shatters incoming projectiles upon impact, followed by a high-tensile PE backing that captures the fragments and dissipates the remaining energy.
Multi-Curve Anatomical Fit:
Unlike flat, cumbersome plates, our Multi-Curve panels are heat-pressed into a 3D shape that mirrors the human torso. This reduces "hot spots" and pressure points, allowing for better arm movement and long-term wearability.
Edge-to-Edge Protection:
Utilizing specialized high-pressure pressing techniques, Jiu'an panels minimize the "rim" of non-protective material found in many budget plates, ensuring the maximum effective protective surface area.
Tactical Finish & Durability:
Each panel is wrapped in a heavy-duty, water-resistant 1000D Nylon cover or finished with a Polyurea spray coating to protect the ballistic core from UV rays, drops, and chemical exposure.
As an official GA-certified supplier, Jiu'an ensures that every panel is a result of rigorous industrial consistency.
High-Pressure Molding:
Our panels are cured in 2000-ton hydraulic presses to achieve maximum density and structural integrity.
Non-Destructive Testing:
We employ X-ray inspection on our ceramic composite batches to ensure zero internal micro-cracks before they leave the factory.
Custom OEM Solutions:
We provide bespoke sizes for vehicle door shielding, backpack inserts, and specialized "Side Plate" configurations for full-spectrum tactical protection.
Support & Application Fields
These panels are essential for Combat Soldiers, SWAT Entry Teams, and High-Risk Security Details. We offer a 5-year operational warranty and provide certified MA/CNAS test reports with every government-scale order.
FAQ - Frequently Asked Questions
Q: What is the difference between "Stand-Alone" (SA) and "In-Conjunction-With" (ICW) panels?
A: Stand-Alone panels provide their rated protection level (e.g., Level III) on their own. ICW panels are thinner and lighter but must be worn in front of Level IIIA soft armor to achieve their full rated protection.
Q: Are these plates "Multi-Hit" rated?
A: Our Level III PE plates are exceptionally resilient to multi-hit handgun and rifle fire. Our Level IV Ceramic plates are designed to stop high-power Armor Piercing (AP) rounds; while they can often withstand multiple hits, standard NIJ protocol verifies them for a single AP hit.
Q: Do the panels expire?
A: All ballistic materials have a service life. Our panels are guaranteed for 5 years. After this period, we recommend replacing them as the bonding agents in the composite materials may begin to degrade.
Q: How do I know which size I need?
A: The standard 10x12 inch (250x300mm) plate fits the vast majority of tactical plate carriers globally. For specialized requirements, we can manufacture custom sizes to fit specific vehicle or bag dimensions.
