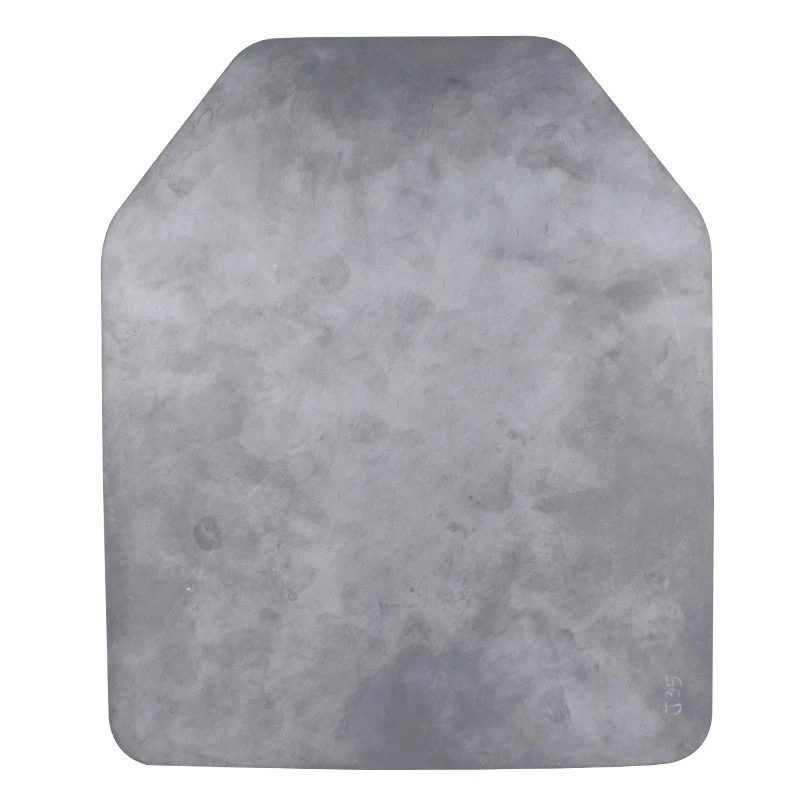

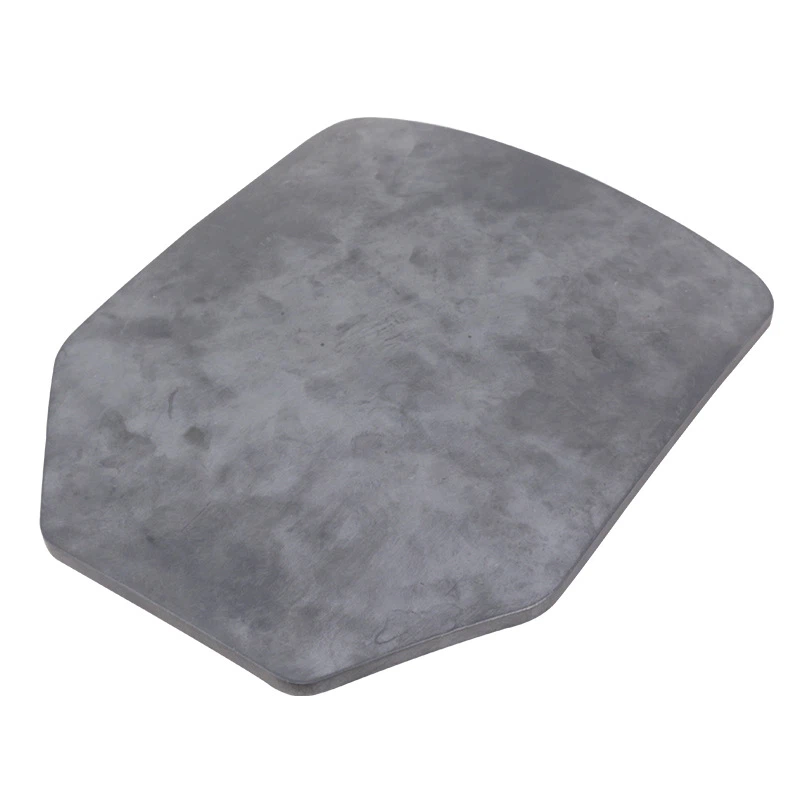

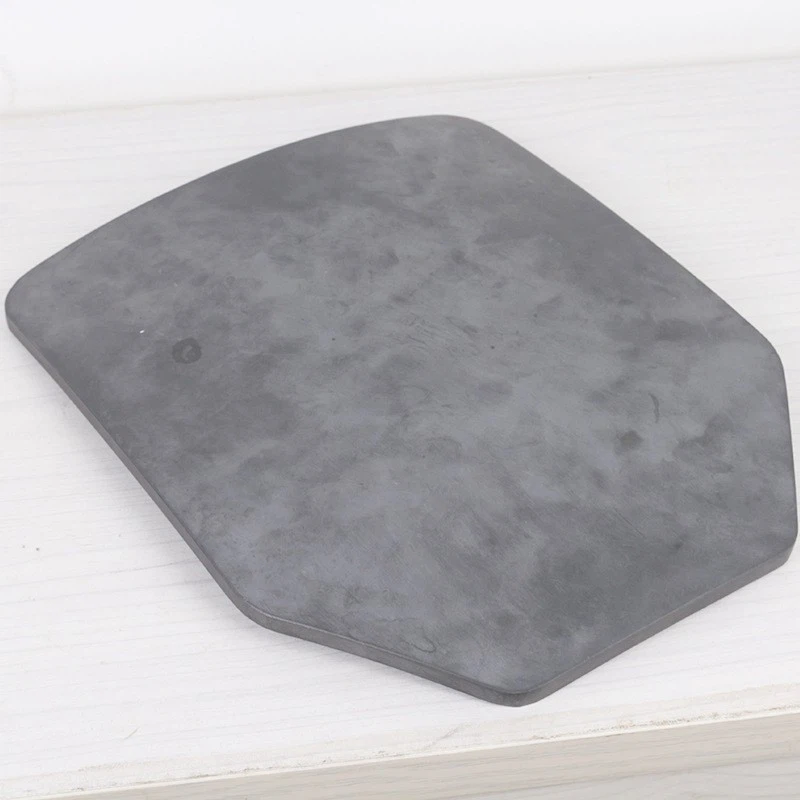

Safety Armor Plate
Products Description
The Safety Armor Plate is a reliable personal protection solution designed for security, law enforcement, and high-risk working environments. Built with advanced materials such as UHMWPE and ceramic composites, it provides effective resistance against ballistic threats while maintaining a balance between weight, comfort, and durability.
Key Features
Reliable Protection Performance
- Protection levels available: NIJ IIIA, III, IV
- Capable of stopping handgun and rifle threats
- Designed with multi-hit resistance for enhanced safety
Multiple Material Options
- Pure UHMWPE – ultra-lightweight for daily wear
- UHMWPE + Alumina – cost-effective and stable
- UHMWPE + Silicon Carbide – lighter and higher performance
Comfortable & Ergonomic Design
- Standard size: 250×300mm (10"×12")

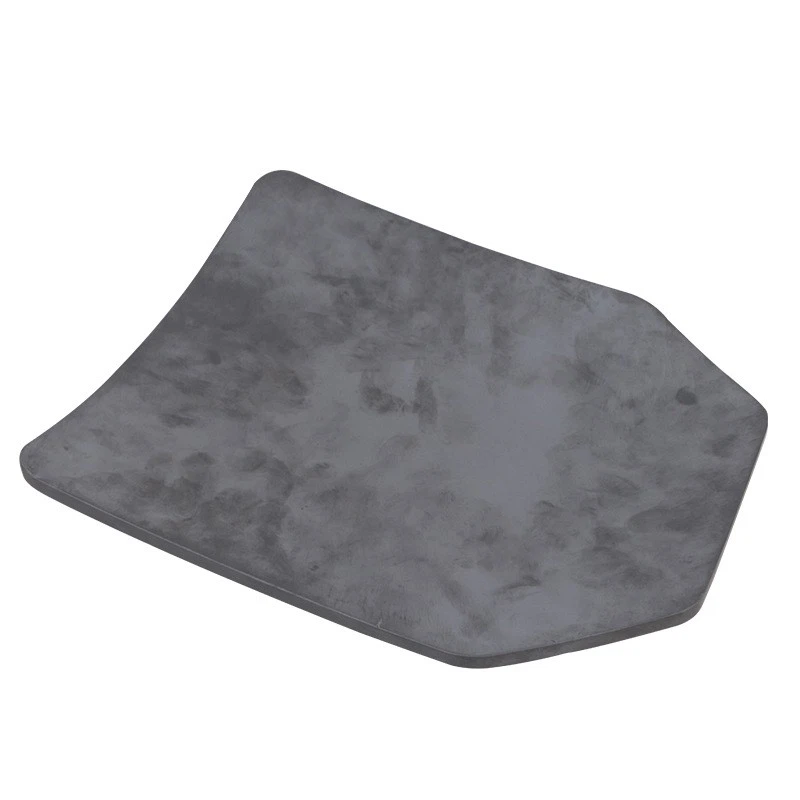

- Optional single curve or multi-curve for better fit
- Reduces fatigue during long-term use
Durable Surface Protection
- Optional fabric cover or polyurea coating
- Water-resistant and wear-resistant
- Suitable for various environmental conditions
Flexible Customization
- Custom size, thickness, and weight available
- Logo printing and OEM packaging supported
- Compatible with most tactical and safety vests
Technical Specifications
|
Item |
Material | Protection Level | Size (mm) | Weight (kg) | Thickness (mm) |
|---|---|---|---|---|---|
| 1 | Pure UHMWPE | NIJ IIIA (.44 Mag) | 250×300 | 0.57 ± 0.05 | 7–8 |
| 2 | UHMWPE + Alumina | NIJ III | 250×300 | 2.15 ± 0.05 | 19 |
| 3 | UHMWPE + Silicon Carbide | NIJ III | 250×300 | 1.85 ± 0.05 | 19 |
| 4 | Pure UHMWPE | NIJ III | 250×300 | 1.45 ± 0.05 | 21 |
| 5 | UHMWPE + Alumina | NIJ IV | 250×300 | 2.85 ± 0.05 | 22 |
| 6 | UHMWPE + Silicon Carbide | NIJ IV | 250×300 | 2.50 ± 0.05 | 22 |
FAQ
Q1: What protection levels are available for this safety armor plate?
A: We offer NIJ IIIA, NIJ III, and NIJ IV levels. IIIA is for handgun protection, III for rifle rounds, and IV for armor-piercing threats.
Q2: Are the plates compatible with standard vests?
A: Yes, our plates are designed to fit most standard tactical vests and plate carriers.
Q3: Do you provide testing reports or certifications?
A: Yes, products can be tested according to NIJ standards, and third-party test reports can be provided upon request.
